Panasonic KX-HDV230 SIP Telefon za telefonske centrale, na stanju: 04.06.2024. crna boja
T/F: 011 2120598E-mail: Kontakt
Panasonic SIP KX-HDV230 IP Telefon - Katalog (Brošura), PDF
Panasonic KX-HDV230, cena telefona je: Kontakt, adapter za napajenje se kupuje posebno, cena adaptera Panasonic KX-A424 je: Kontakt
Uputstvo

Panasonic IP telefon KX-HDV230NE Panasonic SIP telefon odličnih karakteristika po niskoj ceni •  Ekran: 132 x 64 piksela 2.3 inča grafički LCD sa pozadinskim osvetljenjem •  LED indikatori: Indiktaor 1 (Plavo) - Message Waiting & Ringer / Indikator 2 (Plavo/Crveno) - Flexible function & Line Indicator •  Tastatura:
24 (12 x 2) slobodna tastera sa LED indikacijom
Navigacioni Taster u 5 pozicija (up/down/left/ right/Enter)
Numerička tastatura 09,*,# Key Yes
Volume Key Yes (- / +)
Dedicated Keys 9 (Cancel, Conference, Transfer, Hold/Message, Redial, Mute/Auto Answer, SP-Phone, Headset) •  3 programibilna "Soft" tastera •  Network Interface 2 x RJ45 10 / 100 base-T (Auto / 100MB-FULL/ 100MB-HALF /10MB-FULL / 10MB-HALF) Auto MDI / MDIX •  Handset Full Duplex Wideband Hearing aid compatibility •  Wired Headset port Yes Full Duplex (RJ9 jack) •  EHS–Port (Electronic Hook SwitchPort): 3.5mm jack •  Dodatna konzola: KX-HDV20 (opciono) sa 2 x 20 LED tastera. Najviše 5 konzola može se povezati na jedan KX-HDV230 •  SPPhone Yes Wideband Full Duplex (IEEE 1329 compatible) •  Ringer Tone 32 •  ECO mode (LAN speed: 10Mbps only; Cannot use 2nd port) •  Napajanje: AC Adaptor KX-A422 (opciono), PoE (IEEE 802.3af) Class 2 •  Montaža: Na sto u dva položaja (30/45); Nazidna (opciono) •  Dimenzije (Š x D x V)mm: Viša pozicija 252 x 179 x 188 (bez MTK); Niža pozicija 252 x 187 x 154 (bez MTK) •  Elektronska podešavanja jačine tonova:
SP Phone  u 8 nivoa
Handset 8 levels
Ringer 8 levels + Off

•  LCD Contrast 6 levels
LCD Backlight 3 levels + Off
LCD backlight mode On/Auto/Off

BroadSoft (Digium/Asterisk):Broadsoft Compatible:
Basic Call Feature
Missed Calls Display
NWay Conference
Busy Lamp field
Call Centre
Call Park Notification
Click to Call
Feature Key Synchronisation
Shared Call Appearance
Broadsoft Xsi
Broadsoft Presence
Broadsoft Xsi Phonebook

Naglavne slušalice za IP telefone:

  • Slušalice za jedno uho ili za dva uhaMikrofon sa eliminacijom buke, smanjuje uticaj pozadinske bukeŠtite sluh korisnikaPodesiva ručica mikrofonaPogodne za sve vrste Call cntara (Kontakt centara), česte i duge telefonske razgovore
  • Komplet čine odgovarajući priključni kablić (u zavisnosti od modela telefona) i slušalice, kablić se kupuje posebno

KX-HDV230 - Featuring function keys for your business. •  6 SIP accounts •  2.3-inch main LCD •  5-inch self-labeling LCD with flexible function keys •  HD Voice (G.722) •  Up to 500 phonebook •  3-way conference call support •  Compatible with Broadsoft UC one •  2 x 10/100/1000M ports, PoE •  Low standby power consumption •  XML Application Interface •  Plug and Play configuration •  Changeable angle stand

•  Wall mounting


Panasonic strujni adapter KX-A424CE, namenjen za napajanje Panasonic SIP telefona KX-HDV230 i KX-HDV330, kupuje se posebno, ne dolazi uz telefon.

  1. Ulaz 220-240V, 50/60Hz
  2. "+" plus unutra, "-" minus spolja

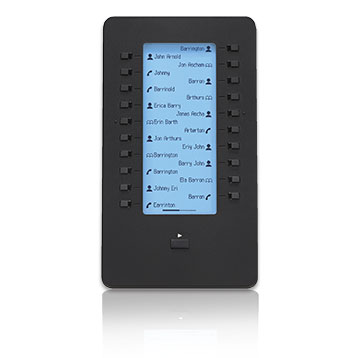

KX-HDV20 - Expansion options for adding flexible function keys to the IP Phone •  5-inch Graphical Self-Labeling LCD with Backlight •  40 (20x2) flexible function keys •  Changeable angle stand (30 / 45 / 60) •  Wall mount supported •  Compatible with KX-HDV430/330/230 •  Up to 5 units per IP Phone

Terminal Line-up
Various terminals are available to meet the needs of your office environment. IP PHONE
Panasonic KX-HDV100NE

KX-HDV100

  • 2.3 inch LCD Display 2 Programmable Buttons 1 Ethernet Port (100 Base-TX) AC Adapter Included Available in Black and White
  • Option: KX-A440 (Wall Mount Kit)
Panasonic KX-HDV130NE

KX-HDV130

  • 2.3 inch Backlight LCD Display 2 Programmable Buttons 2 Ethernet Port (100 Base-TX) Power-over-Ethernet (PoE) Full Duplex Speakerphone Available in Black and White
  • Option: KX-A423 (AC Adapter)
    KX-A440 (Wall Mount Kit)
Panasonic KX-HDV230NE

KX-HDV230

  • 2.3 inch Backlight LCD Display 5 inch Self Labelling Backlight LCD Display 2 x 12 Self Labelling, Programmable Buttons 2 Ethernet Port (1000 Base-T) Power-over-Ethernet (PoE) Full Duplex Speakerphone EHS support Available in Black and White Wall Mount Kit Included
  • Option: KX-HDV20
    KX-A422 or KX-A424 (AC Adapter)
Panasonic KX-HDV330NE

KX-HDV330

  • 4.3 inch Backlight LCD Display Colour Touch Display 3 x 8 Self Labelling, Programmable Buttons 2 Ethernet Port (1000 Base-T) Power-over-Ethernet (PoE) Full Duplex Speakerphone Built-in Bluetooth ® for Headset EHS support Available in Black and White Wall Mount Kit Included
  • Option: KX-HDV20
    KX-A422 or KX-A424 (AC Adapter)
Panasonic KX-HDV430NE

KX-HDV430

  • Video Communication 4.3 inch Backlight LCD Display Colour Touch Display 3 x 8 Self Labelling, Programmable Buttons 2 Ethernet Port (1000 Base-T) Power-over-Ethernet (PoE) Full Duplex Speakerphone Built-in Bluetooth ® for Headset EHS support Available in Black and White Wall Mount Kit Included
  • Option: KX-HDV20
    KX-A424 (AC Adapter)
Panasonic KX-HDV20NE

Expansion Module

KX-HDV20

*For KX-HDV230/330/430 only

  • Up to 40 flexible function keys
  • Wall Mount Kit Included
Panasonic bežični telefon kx-tgp600, dodatne slušalice kx-tpa60, stoni telefon sa bežičnom vezom kx-tpa65...

Panasonic KX-TGP600CEB

KX-TGP600CEB

  • 1.8 inch LCD Color Display, 65K Voip IETF SIP Version (RFC3261 and companion RFCs) Yes BroadWorks Yes, Asterisk Yes Voice Codec Wideband G.722/G.722.2 (AMR/WB), Narrowband G.711a/law/G.711 m/Law/g.729a AC Adapter Included Available in Black Network 10/100base / T auto MDI/MDIX Ethernet Lan Port 1 IP Stack mode IPv4, IPv6, IPv4/IPv6 dual
  • Detaljnije

Panasonic KX-TPA60CE

KX-TPA60CE

  • 1.8 inch LCD Color Display, 65K Voip IETF SIP Version (RFC3261 and companion RFCs) Yes BroadWorks Yes, Asterisk Yes Voice Codec Wideband G.722/G.722.2 (AMR/WB), Narrowband G.711a/law/G.711 m/Law/g.729a AC Adapter Included Available in Black
  • Detaljnije
Panasonic KX-TPA65

KX-TPA65

  • 1.8 inch LCD Color Display, 65K 1 kolor led indikator HD širokopojasni G.722 Priključak za naglavne slušalice Jednostavno proširenje bez Lan kabla, bežično
  • Detaljnije
Panasonic KX-A424 strujni adapter za napajanje: KX-HDV230, KX-HDV330, KX-HDV430
