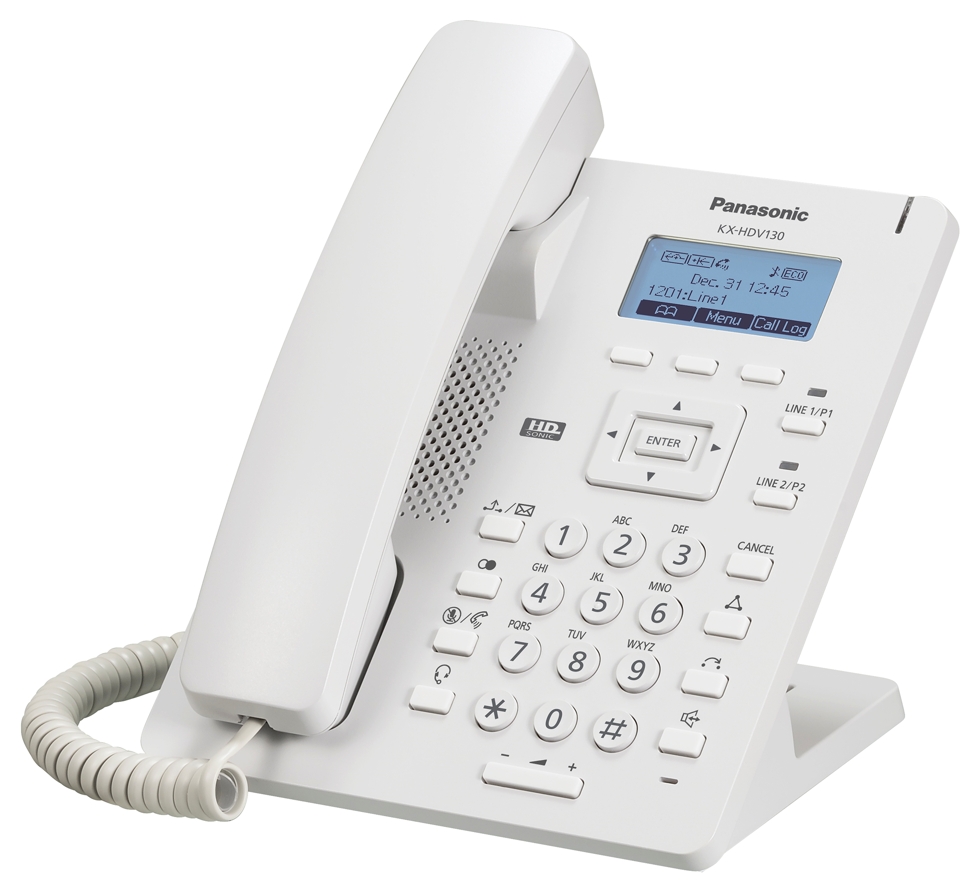

Panasonic KX-HDV130 IP Telefon |
|
| Panasonic KX-HDV130, cena telefona je: Kontakt, adapter za napajenje se kupuje posebno, cena adaptera Panasonic KX-A423 je: Kontakt |
|
Naglavne slušalice za IP telefone:
- Slušalice za jedno uho ili za dva uha
- Mikrofon sa eliminacijom buke, smanjuje uticaj pozadinske buke
- Štite sluh korisnika
- Podesiva ručica mikrofona
- Pogodne za sve vrste Call cntara (Kontakt centara), česte i duge telefonske razgovore
- Komplet čine odgovarajući priključni kablić (u zavisnosti od modela telefona) i slušalice, kablić se kupuje posebno
|
|
| Uputstvo za KX-HDV130, pdf |
- Osnovni model Panasonic SIP telefona je kompaktan i lak za postavljanje na malim prostorima
- Najznačajnije
- • 2-linijski SIP telefon
- • HD širokopojasni zvuk
- • Full-Duplex Speaker Phone
- • Podrška za UC funkcije uključujući Broadsoft UC-ONE, uaCTSA
- • 2 SIP naloga
- • 2 LAN porta
- Detaljnije
- • Ekran: 132 x 64 piksela 2.3 inča grafički LCD sa pozadinskim osvetljenjem
- • LED indikatori: Indiktaor 1 (Plavo) - Message Waiting & Ringer / Indikator 2 (Plavo/Crveno) - Flexible function & Line Indicator
- • Tastatura:
3 programibilna "Soft" tastera
Flexible function & Line Indicator 2
Navigacioni Taster u 5 pozicija (up/down/left/ right/Enter)
Numerička tastatura 09,*,# Key Yes
Volume Key Yes (- / +)
Dedicated Keys 8 (Cancel, Conference, Transfer, Hold/Message, Redial, Mute/Auto Answer, SP-Phone, Headset)
- • Network Interface 2 x RJ45 10 / 100 base-T (Auto / 100MB-FULL/ 100MB-HALF /10MB-FULL / 10MB-HALF) Auto MDI / MDIX
- • Handset Full Duplex Wideband Hearing aid compatibility
- • RJ9 utičnica za naglavne slušalice (Full Duplex) *
- • SPPhone Yes Wideband Full Duplex (IEEE 1329 compatible)
- • Ringer Tone 32
- • ECO mode (LAN speed: 10Mbps only; Cannot use 2nd port Yes
- • Napajanje: AC Adaptor KX-A423, kupuju se posebno, (opciono), PoE (IEEE 802.3af) Class 1
- • Montaža: Na sto u dva položaja (30/45); Nazidna (opciono)
- • Dimenzije (Š x D x V)mm: Viša pozicija 167 x 165 x 148 (bez MTK); Niža pozicija 167 x 173 x 115 (bez MTK)
- • Elektronska podešavanja jačine tonova:
SP Phone u 8 nivoa
Handset 8 levels
Ringer 8 levels + Off
LCD Contrast 6 levels
LCD Backlight 3 levels + Off
LCD backlight mode On/Auto/Off
|

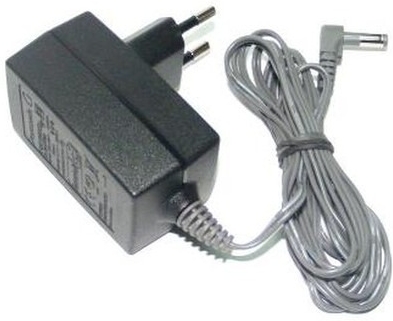

Panasonic strujni adapter KX-A423CE, namenjen za napajanje Panasonic SIP telefona KX-HDV130, kupuje se posebno, ne dolazi uz telefon.
- Ulaz 220-240V, 50/60Hz, 100mA
- Izlaz 6,5V-500mA
- "+" plus unutra, "-" minus spolja
Panasonic KX-A423 strujni adapter za napajanje |
| |
KX-HDV130
- 2.3 inch Backlight LCD Display
- 2 Programmable Buttons
- 2 Ethernet Port (100 Base-TX)
- Power-over-Ethernet (PoE)
- Full Duplex Speakerphone
- Available in Black and White
- Option: KX-A423 (AC Adapter)
KX-A440 (Wall Mount Kit)
|
|
Terminal Line-up |
Various terminals are available to meet the needs of your office environment. IP PHONE |
Panasonic KX-HDV100NE |
KX-HDV100
- 2.3 inch LCD Display
- 2 Programmable Buttons
- 1 Ethernet Port (100 Base-TX)
- AC Adapter Included
- Available in Black and White
- Option: KX-A440 (Wall Mount Kit)
|
|
|
|
|
|
KX-HDV130
- 2.3 inch Backlight LCD Display
- 2 Programmable Buttons
- 2 Ethernet Port (100 Base-TX)
- Power-over-Ethernet (PoE)
- Full Duplex Speakerphone
- Available in Black and White
- Option: KX-A423 (AC Adapter)
KX-A440 (Wall Mount Kit)
|
|
|
|
|
|
KX-HDV230
- 2.3 inch Backlight LCD Display
- 5 inch Self Labelling Backlight LCD Display
- 2 x 12 Self Labelling, Programmable Buttons
- 2 Ethernet Port (1000 Base-T)
- Power-over-Ethernet (PoE)
- Full Duplex Speakerphone
- EHS support
- Available in Black and White
- Wall Mount Kit Included
- Option: KX-HDV20
KX-A422 or KX-A424 (AC Adapter)
|
|
|
|
|
Panasonic KX-HDV330NE |
KX-HDV330
- 4.3 inch Backlight LCD Display
- Colour Touch Display
- 3 x 8 Self Labelling, Programmable Buttons
- 2 Ethernet Port (1000 Base-T)
- Power-over-Ethernet (PoE)
- Full Duplex Speakerphone
- Built-in Bluetooth ® for Headset
- EHS support
- Available in Black and White
- Wall Mount Kit Included
- Option: KX-HDV20
KX-A422 or KX-A424 (AC Adapter)
|
|
|
|
|
Panasonic KX-HDV430NE |
KX-HDV430
- Video Communication
- 4.3 inch Backlight LCD Display
- Colour Touch Display
- 3 x 8 Self Labelling, Programmable Buttons
- 2 Ethernet Port (1000 Base-T)
- Power-over-Ethernet (PoE)
- Full Duplex Speakerphone
- Built-in Bluetooth ® for Headset
- EHS support
- Available in Black and White
- Wall Mount Kit Included
- Option: KX-HDV20
KX-A424 (AC Adapter)
|
|
|
|
|
Panasonic KX-HDV20NE |
Expansion Module
KX-HDV20
*For KX-HDV230/330/430 only
- Up to 40 flexible function keys
- Wall Mount Kit Included
|
|
| |
|
|

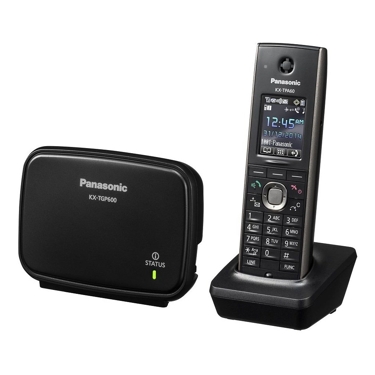

Panasonic KX-TGP600CEB |
KX-TGP600CEB
- 1.8 inch LCD Color Display, 65K
- Voip IETF SIP Version (RFC3261 and companion RFCs) Yes
- BroadWorks Yes, Asterisk Yes
- Voice Codec Wideband G.722/G.722.2 (AMR/WB), Narrowband G.711a/law/G.711 m/Law/g.729a
- AC Adapter Included
- Available in Black
- Network 10/100base / T auto MDI/MDIX
- Ethernet Lan Port 1 IP Stack mode IPv4, IPv6, IPv4/IPv6 dual
- Detaljnije
|
|
|
|
|
Panasonic KX-TPA60CE |
KX-TPA60CE
- 1.8 inch LCD Color Display, 65K
- Voip IETF SIP Version (RFC3261 and companion RFCs) Yes
- BroadWorks Yes, Asterisk Yes
- Voice Codec Wideband G.722/G.722.2 (AMR/WB), Narrowband G.711a/law/G.711 m/Law/g.729a
- AC Adapter Included
- Available in Black
- Detaljnije
|
|
| |
|
|
Panasonic KX-TPA65 |
KX-TPA65
- 1.8 inch LCD Color Display, 65K
- 1 kolor led indikator
- HD širokopojasni G.722
- Priključak za naglavne slušalice
- Jednostavno proširenje bez Lan kabla, bežično
- Detaljnije
|
|
|
