NET ASUS Router Wireless RT-N12E (300 Mbps)

• Mrežni standard

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4

• Product Segment

N300 complete networking; 300Mbps

• Brzina protoka

802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps

• Antena

External 2 dBi antenna x 2
*Antenna type will differ according to local regulations and requirement in each country

• Radna frekfencija

2.4GHz

• Enkripcija

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support

• Firewall i kontrola pristupa

Firewall: NAT and SPI (Stateful Packet Inspection)
Filtering: Port, IP packet, URL Keyword, MAC address

• Upravljanje uređajem

DHCP, System Event Log

• Tip WAN konekcije

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

• Alati

Device Discovery
Firware Restore
Setup Utility

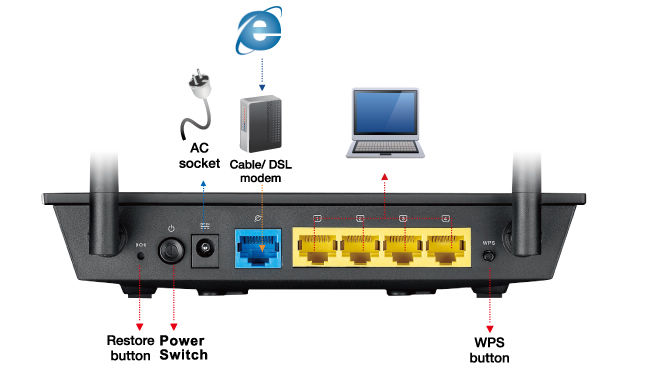

• Portovi

1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN

• Tasteri

WPS Button, Reset Button, Power Button

• LED indikator

PWR x 1
LAN x 4
WAN x 1

• Napajanje

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current

• Podržani operativni sistemi

Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista
Windows® XP , 32bit/64bit
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Linux

• Uslovi u okolini

Operating Temperature: 0 °C to 45 °C ( °F to oF)
Storage Temperature: -20 ° to 70 ° C ( °F to °F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 5 % to 90 % (Non-condensing)

• Dimenzije

168 x 124 x 30 mm (LxWxH)

• Težina

210 g

• Sadržaj pakovanja

RT-N12E Wireless Router
RJ-45 Cable
Power Adapter
Warranty Card
Quick Start Guide
Support CD (User Manual and Utility Software)

	TELEFONSKE CENTRALE Panasonic - Link

	KX-DT680 Panasonic

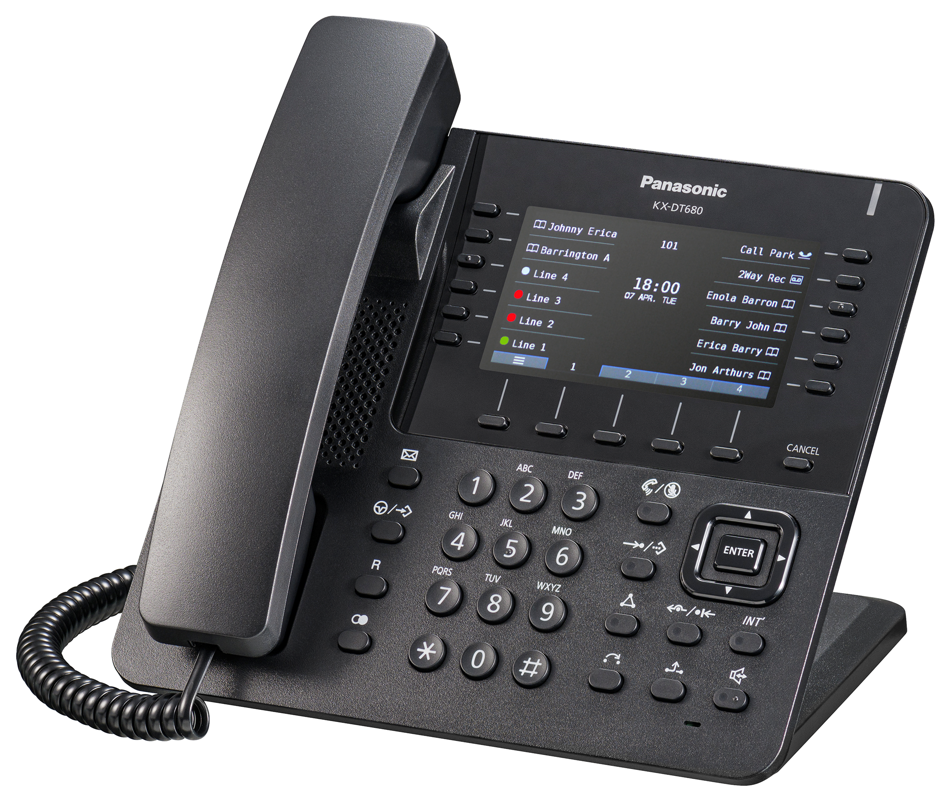

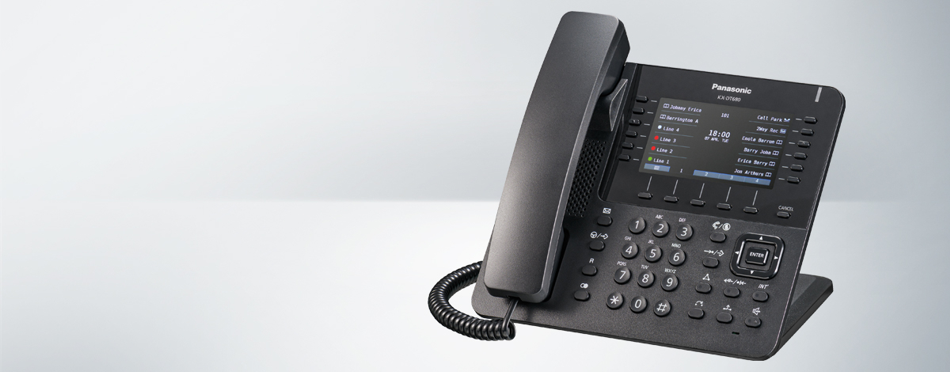

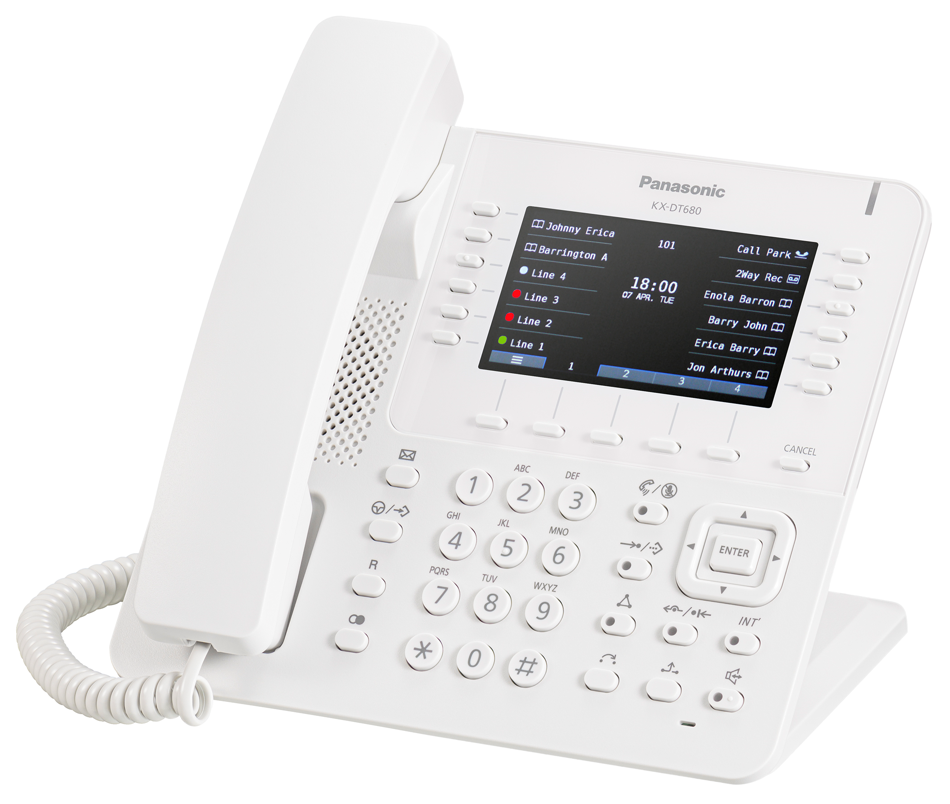

	KX-DT680 Panasonic KX-DT680 Spec Shett KX-DT680 Key Features Large Colour LCD with Backlight Flexible Function Keys of 12 items x 4 pages with Self Labelling EHS (Electric Hook Switch) port Speaker Phone, handset and headset with full duplex Available in black and white colour Not ready or willing to migrate to IP, but would like to have advanced features? Our first colour screen model in the digital phone line up, will light up any desk. The user experience is taken to a new level with improved audio quality and easy to use features. The design means the D-XDP port is not included in this model, however the ‘power' load on the system is increased. Please use our online configurator to make sure you can connect the correct number of handsets. Operating your phone with a headset for convenience? The KX-DT680 has the EHS (Electronic Hook Switch) feature included, so all Panasonic confirmed headsets can be used.

	KX-DT680 Panasonic

	KATALOG Panasonic KX-DT635 KX-DT680, NEW

	Preporučujemo: Asus RP-N12 Range Extender N300Mbps, povećava pokrivenost Wi-Fi signalom, ima dve spoljne antene, bežično se povezuje na ruter (Range Extender, Access Point, Media Bridge).


	NET ASUS Router Wireless RT-N12E (300 Mbps) • Mrežni standard IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4 • Product Segment N300 complete networking; 300Mbps • Brzina protoka 802.11b : 1, 2, 5.5, 11Mbps 802.11g : 6,9,12,18,24,36,48,54Mbps 802.11n : up to 300Mbps • Antena External 2 dBi antenna x 2 *Antenna type will differ according to local regulations and requirement in each country • Radna frekfencija 2.4GHz • Enkripcija 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support • Firewall i kontrola pristupa Firewall: NAT and SPI (Stateful Packet Inspection) Filtering: Port, IP packet, URL Keyword, MAC address • Upravljanje uređajem DHCP, System Event Log • Tip WAN konekcije Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP • Alati Device Discovery Firware Restore Setup Utility • Portovi 1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN • Tasteri WPS Button, Reset Button, Power Button • LED indikator PWR x 1 LAN x 4 WAN x 1 • Napajanje AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 0.5 A current • Podržani operativni sistemi Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista Windows® XP , 32bit/64bit Mac OS X 10.4 Mac OS X 10.5 Mac OS X 10.6 Mac OS X 10.7 Linux • Uslovi u okolini Operating Temperature: 0 °C to 45 °C ( °F to oF) Storage Temperature: -20 ° to 70 ° C ( °F to °F) Operating Humidity: 10 % to 90 % (Non-condensing) Storage Humidity: 5 % to 90 % (Non-condensing) • Dimenzije 168 x 124 x 30 mm (LxWxH) • Težina 210 g • Sadržaj pakovanja RT-N12E Wireless Router RJ-45 Cable Power Adapter Warranty Card Quick Start Guide Support CD (User Manual and Utility Software)

	Uputstvo na engleskom, pdf, User manual Asus RT12E, pdf
	NET ASUS Router Wireless RT-N12E (300 Mbps) - Bežični ruter Asus RT-N12E
